رقم الجزء
تجريد
صلاحيه
UOM
NIIN
TXT
وصف:

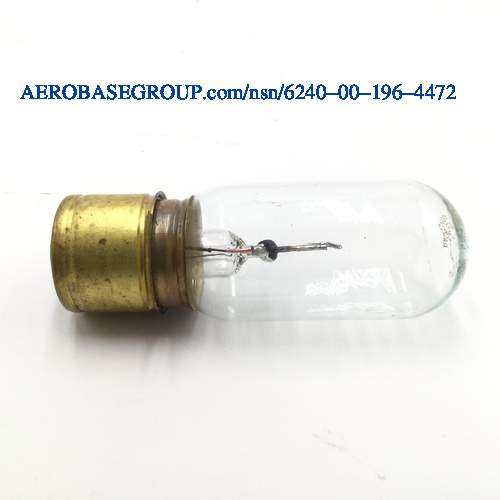

Incandescent Lamp
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
4.000 inches
MRC:
A designation of the form of the filament wire or ribbon and the arrangement on the supports.AFSP
Filament Designation:
C-2v
MRC:
The value of output brightness for which an item is rated.AFST
Light Output Rating:
650.000 lumens single rating
MRC:
The numeric value indicating the average life expectancy for which the item is rated,expressed in hours.AFSV
Average Life Rating In Hours:
300.0
MRC:
An indication of the peculiar type of heavy duty performance for which the filament is rated.AFSX
Filament Heavy Duty Service Rating:
Not rated
MRC:
The characteristic of the radiant energy generated by the lamp within or adjacent to the visible spectrum of light.AGDV
Emitted Light Characteristic:
White
MRC:
The distance from the geometric center of the light source to a particular point on the item.AGDW
Light Center Length:
1.250 inches
MRC:
The value(s) of potential for which the item is rated.AMSE
Voltage Rating:
28.000 volts
MRC:
The rated power that an item can safely consume or provide.BDWW
Wattage Rating:
43.000 watts
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Filament shielding and heat resistant glass
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the base.CRPS
Base Style:
Medium prefocus
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the bulb.CRSK
Bulb Style:
T (tubular)
MRC:
A designation which indicates the shape and size of the bulb.CSJW
Bulb Designator:
T-10
MRC:
An indication of the light transmission characteristic of the bulb.CSMC
Bulb Light Transmission Characteristic:
Transparent
MRC:
The amount of current for which the item is designed.CTQM
Current Rating For Which Designed:
1.536 amperes
MRC:
A term denoting the measurement used to indicate the average life of the item.CWBF
Rated Average Life:
Hours
MRC:
The position in which the item is designed to operate.CWGK
Burning Position:
Base down
