وصف:

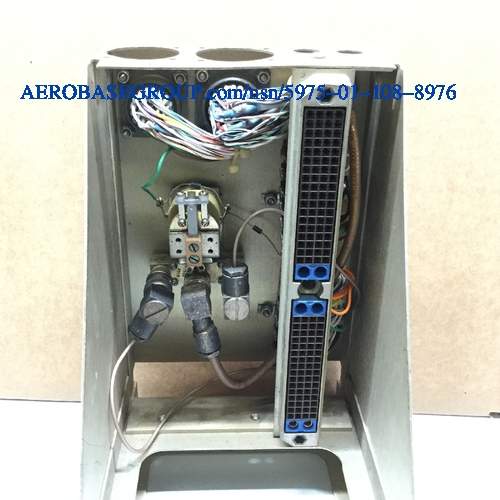

Electrical Equipme Mounting Base
MRC:
The provision/s/ for mounting the item.ABDR
Mounting Provision:
Unthreaded hole
MRC:
An overall measurement between specified points of an item,in distinction from height.ABFY
Overall Depth:
17.440 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
11.350 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
5.340 inches
MRC:
A measurement of the center to center distance between the mounting holes along the width.ADFX
Center To Center Distance Between Mounting Holes Along Width:
4.220 inches
MRC:
Indicates the type of mount provided to isolate the item from shock and vibration.AESW
Vibration Mount Type:
Cup
Center To Center Distance Between Mounting Holes Along Depth:
15.110 inches
MRC:
Indicates the type and number of facilities provided for mounting the component/s/.CRQY
Component Mounting Facility Type And Quantity:
2 thumbscrew
MRC:
The maximum weight the item is designed to support.CSMX
Maximum Weight Capacity:
18.0 pounds
MRC:
The rated load range the item is designed to support while retaining its vibration and shock isolation characteristics.CTBW
Vibration Mount Load Rating Range:
+2.0/+4.0 pounds
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Aluminum
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-a-250/8, temp h32 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Mil-c-5541, type ii, grade c, class 3 military specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Tray type w/chassis
