رقم الجزء 7954478

Worm Shaft

الأسعار والتوافر

أرسل هذا النموذج لمعرفة الأسعار الحالية وتوافر NSN هذا.

الصور

الصور المرجعية لهذا الجزء

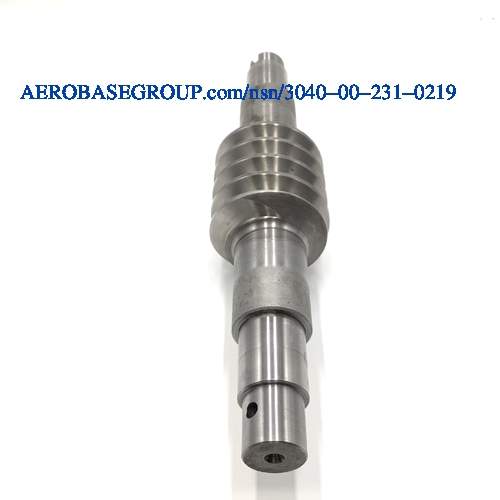

صورة رقم المخزون الوطني 3040-00-231-0219

التسعير التاريخي لهذا المنتج هو بين 2579.031 and 3372.579 USD. اعتمادا على الكمية والتوافر والحالة والمهلة الزمنية والتوقف المحتمل للعنصر ، لا يمكننا ضمان التسعير حتى نقدم لك عرض أسعار محدث.

رقم الجزء

تجريد

صلاحيه

UOM

NIIN

رقم الجزء:

7954478

تجريد:

صلاحيه:

N/A

وحدة القياس:

1 EA

NIIN:

002310219

NSN

رقم المخزون الوطني:

3040-00-231-0219 3040002310219

TXT

وصف:

Worm Shaft

INC

رمز اسم العنصر:

18249

MRC:

A term used to identify the ends as identical or not identical.AAHN

End Similarity:

Not identical

MRC:

The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP

Overall Length:

17.594 inches

MRC:

A numeric value that reflects the hardness of the teeth when used in conjunction with a hardness rating scale.BYFR

Teeth Hardness Rating:

C scale 58 to 63

MRC:

The number of threads on the worm.CFFB

Worm Thread Quantity:

MRC:

The distance a worm thread advances axially in one complete turn.CFFC

Worm Thread Lead:

0.875 inches

MRC:

The direction of the worm thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.CFFD

Worm Thread Direction:

Left-hand

MRC:

The pressure angle of the worm,expressed in degrees.CFFF

Worm Pressure Angle In Deg:

27.500

MRC:

The angular amount the worm is inclined.CFFG

Worm Helix Angle:

4 degrees 57 min

MRC:

The length of a straight line which passes through the center of the worm,and terminates at the outside circumference.CFFK

Worm Outside Diameter:

Between 3.774 inches and 3.776 inches

MRC:

A measurement indicating the diameter-pitch per measurement scale of the worm.CFFL

Worm Pitch Diameter:

3.216 inches

MRC:

A numeric value that reflects the hardness of the shaft when used in conjunciton with a hardness rating scale.CFFM

Shaft Hardness Rating:

C scale 17 to 35

MRC:

A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis of the worm.CFFN

Worm Thread Section Length:

3.750 inches

MRC:

A measurement of the longest dimension of the worm body,in distinction from width.CFFP

Worm Body Length:

Between 11.066 inches and 11.076 inches

MRC:

An indication of whether or not the worm body end/s/ is provided with a tapered bearing surface.CFFQ

Worm Body Tapered Bearing Surface End:

Not provided

MRC:

Indicates the location of the shaft(s) on the item.CFFW

Shaft Location:

Both ends of worm

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

0.125 inches second end, first portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

0.125 inches first end, first portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

0.875 inches second end, second portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

0.875 inches first end, fourth portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

0.875 inches first end, second portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

1.032 inches second end, third portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

1.156 inches first end, third portion

MRC:

A measurement of the longest dimension of the straight unthreaded portion of the item,in distinction from width.CFFX

Straight Unthreaded Length:

1.438 inches second end, fourth portion

MRC:

The length of a straight line which passes through the center of the straight unthreaded section,and terminates at the circumference.CFFY
