رقم الجزء
تجريد
صلاحيه
UOM
NIIN
رقم الجزء:
7mf4033-1da10-1ac6-z-a01
معلومات الجزء

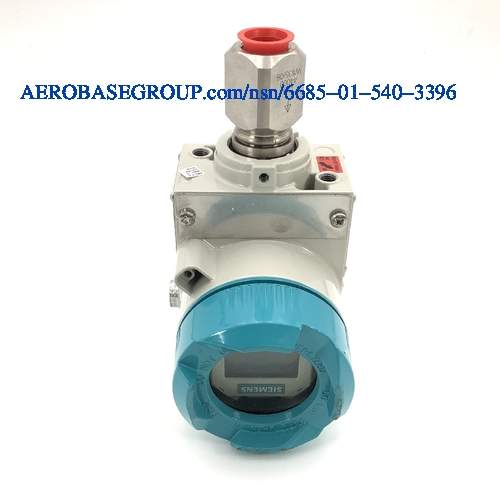

(inavy)pressure transmitter
TXT
وصف:
Pressure Transmitter
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
8.920 inches
MRC:
The number of mounting devices used as a means of attaching the item.ACUP
Mounting Device Quantity:
1
MRC:
The means by which the item is actuated.AFLW
Actuation Method:
Diaphragm
MRC:
The number of contacts which provide electrical connection.AFRA
Contact Quantity:
1
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Misc propulsion plant group
MRC:
Indicates the type of contact(s) included on the item.AKSF
Contact Type:
Screw terminal
MRC:
The number of electrical connections provided.ASKX
Electrical Connection Quantity:
1
MRC:
The number of mechanical connections provided.ASSB
Mechanical Connection Quantity:
1
MRC:
Designates the thread size,diameter,or the like,of the mechanical connection.ASSC
Mechanical Connection Size:
1/2-14npt female
MRC:
Indicates the type of mechanical connection/s/ provided.ASSD
Mechanical Connection Type:
Internal pipe
MRC:
The means of attaching the item.AXGY
Mounting Method:
Bracket
MRC:
The minimum to maximum value which the item is capable of measuring.BHMW
Measurement Range:
+0.0/+232.0 pounds per square inch
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Height: 9.30in; bracket material: stainless steel; housing material; die-cast aluminum; display: digital indicator
