رقم الجزء F34-14M

Rod End Plain Bearing
توافر المخزون  رموز حالة المنتج

رقم الجزء f34-14m في المخزون بالكميات والشروط التالية.

  • NS: 175
  • NE: 50
  • AR: 26
  • SV: 1

ملاحظة: تم آخر تحديث لتوفر هذا المنتج 03/20/2024 وربما تغيرت منذ ذلك الحين. اطلب عرض أسعار للأسعار المحدثة والتوافر.

الأسعار والتوافر

أرسل هذا النموذج لمعرفة الأسعار الحالية وتوافر NSN هذا.
رقم الجزء:
كم:
عنوان البريد الإلكتروني:
الهاتف:
مرجع:
شركة:
اسم:

نحن لا نشارك أو نبيع معلوماتك لأي شخص.
الخصوصيه | حيث

All major credit cards accepted as well as gov. p-cards

الصور

الصور المرجعية لهذا الجزء

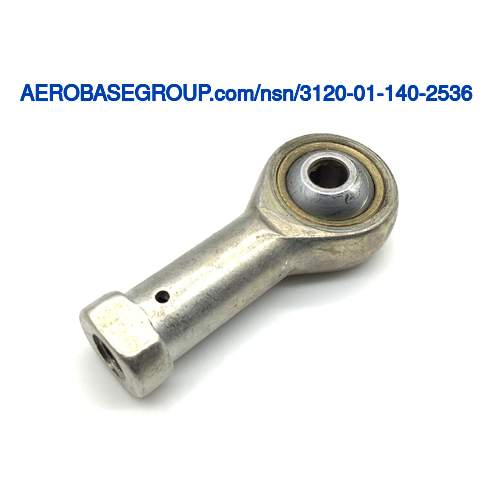

صورة رقم المخزون الوطني  3120-01-140-2536

التسعير التاريخي لهذا المنتج هو بين 11.54 and 15.579 USD. اعتمادا على الكمية والتوافر والحالة والمهلة الزمنية والتوقف المحتمل للعنصر ، لا يمكننا ضمان التسعير حتى نقدم لك عرض أسعار محدث.

رقم الجزء
تجريد
صلاحيه
UOM
NIIN
رقم الجزء:
f34-14m
تجريد:
No
صلاحيه:
N/A
وحدة القياس:
1 EA
NIIN:
011402536

معلومات الجزء
Magnetic inspected rod end body

NSN
رقم المخزون الوطني:
3120-01-140-2536 3120011402536
TXT
وصف:
Rod End Plain Bearing
INC
INC
رمز اسم العنصر:
13209
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Internally threaded w/bead and wrench flats and inspection hole
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.7500 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.1895 inches and 0.1915 inches
MRC:
None.AGGF
Outer Member Outside Diameter:
Between 0.7400 inches and 0.7600 inches
MRC:
None.AGGG
Bore Center To Shank End Distance:
Between 1.3430 inches and 1.4070 inches
MRC:
None.AGGH
Outer Member Width:
Between 0.3230 inches and 0.3330 inches
MRC:
None.AGGJ
Inner Member Width:
Between 0.4320 inches and 0.4370 inches
MRC:
None.AGGY
Shank Thread Length:
Between 0.7190 inches and 0.8120 inches
MRC:
None.AGHA
Inspection Hole Center To End Distance:
Between 0.3070 inches and 0.3170 inches
MRC:
The shortest straight line between wrenching flats,perpendicular to the height of the shank.AGHB
Shank Width Across Wrench Flats:
Between 0.3650 inches and 0.3850 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
2850 pounds
