وصف:

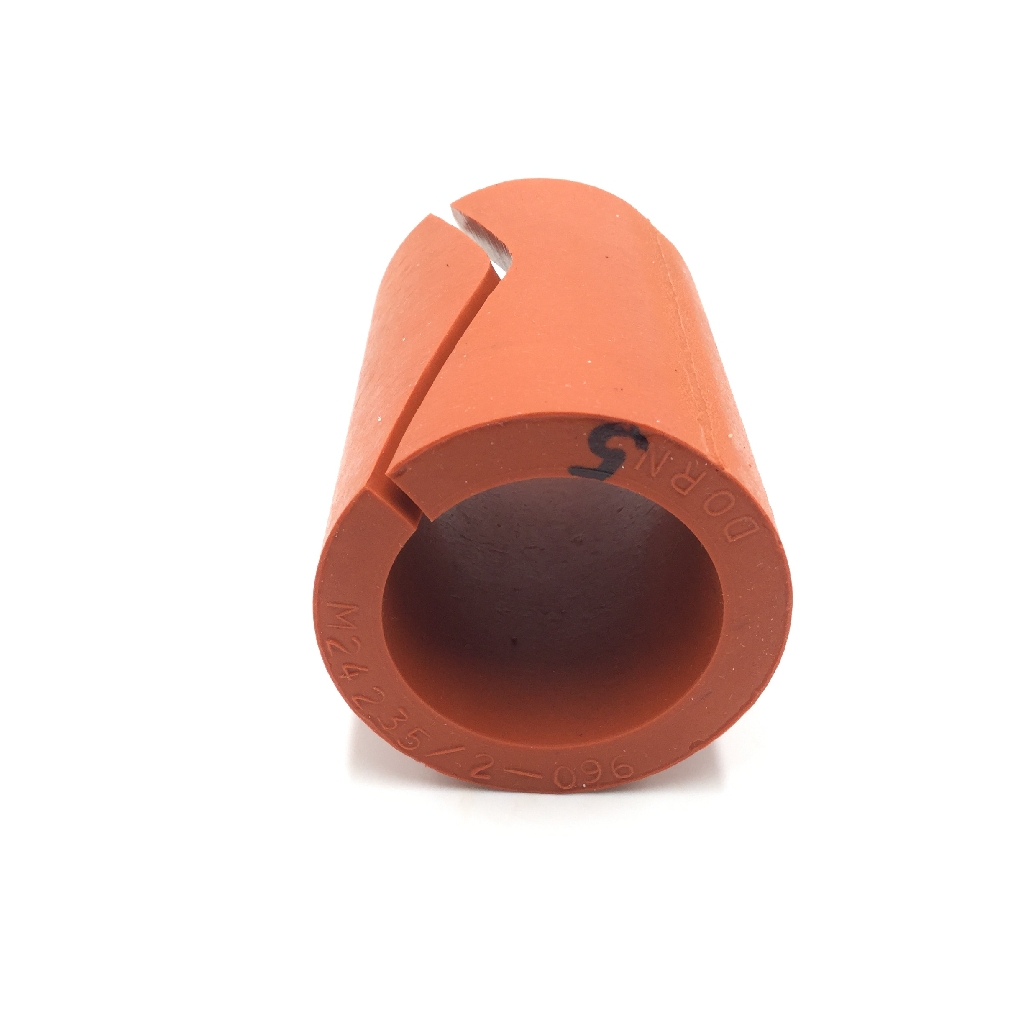

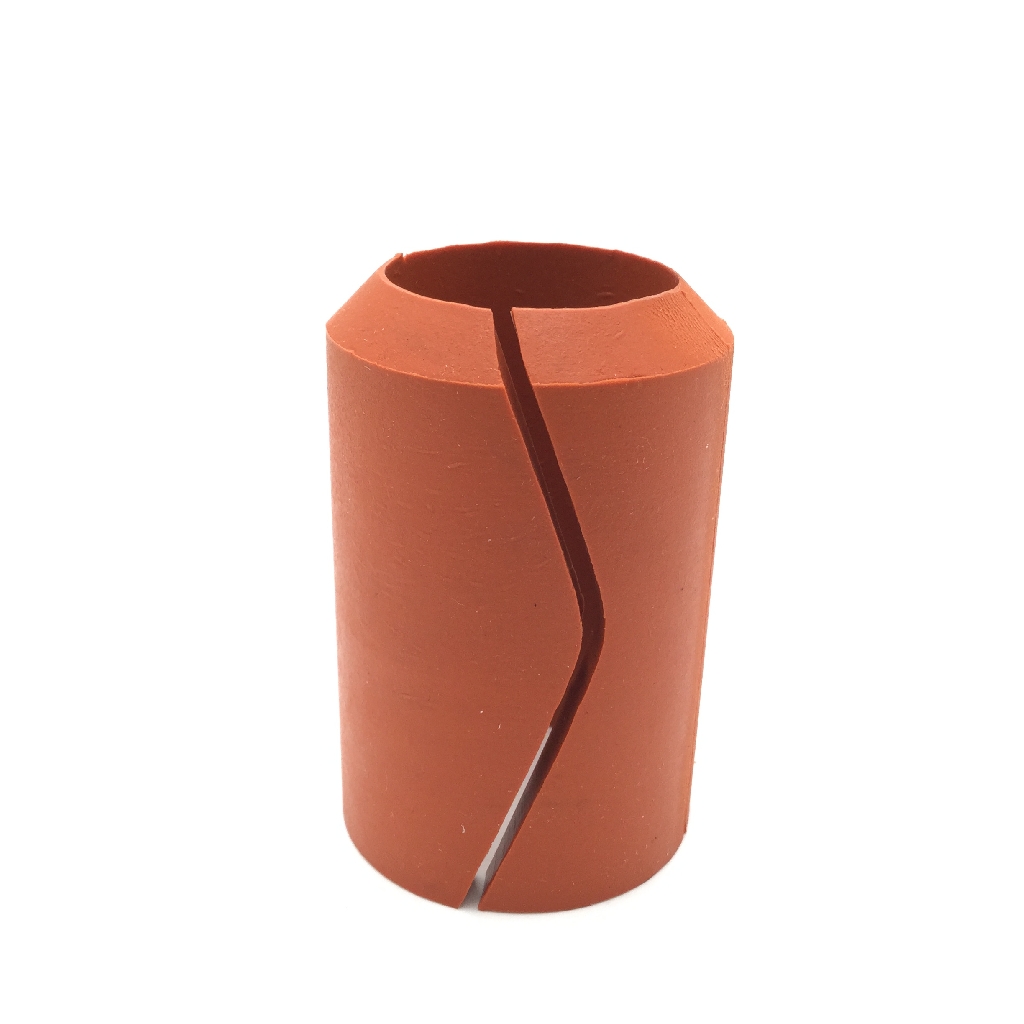

Packing Assembly
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Angle top ring
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Cup intermediate ring
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Square/rectangular bottom ring
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
1.415 inches
MRC:
The length of a straight line which passes through the center of an item,and terminates at the outside circumference.ABHE
Outside Diameter:
1.923 inches
MRC:
The number of rings between the top and bottom rings.ADTH
Intermediate Ring Quantity:
1
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
3.000 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic intermediate ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber silicone class q top ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1008 bottom ring or steel comp 1009 bottom ring or steel comp 1015 bottom ring or steel comp 1018 bottom ring or steel comp 1020 bottom ring or steel bottom ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-m-20693 military specification single material response intermediate ring or l-p-410 federal specification single material response intermediate ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-s-698 federal specification single material response bottom ring
MRC:
A feature of the item of supply which must be specifically recorded when the reference number covers a range of items.ZZZY
Reference Number Differentiating Characteristics:
As differentiated by top ring material
