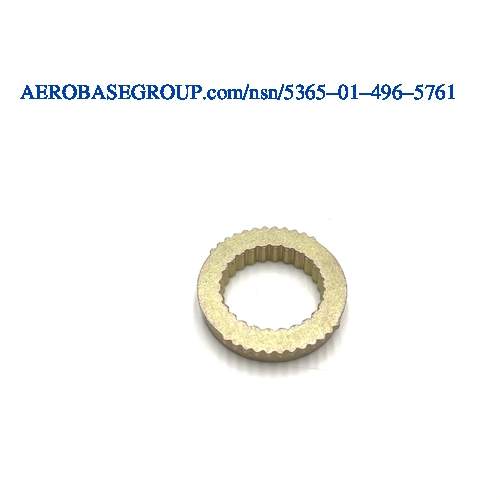

Lockring-oversize
TXT
وصف:
Serrated Lock Ring
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 0.571 inches and 0.578 inches
MRC:
The length of a straight line which passes through the center of that portion used to guide the item and terminates at the circumference.AAVL
Pilot Diameter:
0.574 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.161 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
Between 0.906 inches and 0.915 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
F-15 aircraft
MRC:
The number of serrations on the outer circumference.AWPM
Outer Serration Quantity:
24
MRC:
The number of serrations on the inner circumference.AWPN
Inner Serration Quantity:
26
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Radians 2 places opposite each other 80-90 degrees; no specific angularity exists between internal and external serrations.The serated sectors will belocated diametrically opposite.Part will have cadmium plate finish perqq-p-416, type ii, cl 3; material is 1117 steel per astm a108; hardness-case hardened to 36-45 hrc
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Steel
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
